HEIDENHAIN LINEAR SCALES

Heidenhain linear scales (linear encoders) provide precise position feedback for machine tools, measuring equipment, and automation systems. Built for accuracy and durability, they come in sealed and exposed designs to suit different environments and performance requirements.

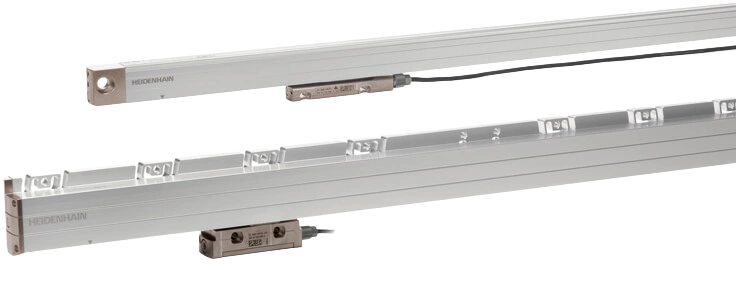

Sealed linear scale

Sealed linear encoders are ideal for machine-tool environments. The scale is enclosed in an anodized aluminum housing with elastic sealing lips that protect the guideway and scanning carriage from chips, dust, and coolant. The scanning carriage moves with very low friction inside the scale, producing stable signals and long operational life. Sealed encoders are mounted externally on a block and coupled to the machine guideway via a flexible coupling that compensates for misalignment. Heidenhain offers compact thin-line housings for narrow installations up to ~2040 mm measuring length and full-size housings engineered for high resistance to vibration for short to medium measuring ranges.

Exposed linear scale

Exposed linear encoders are intended for machines that demand the highest metrological performance. With an open scale and readhead design, these systems minimize mechanical hysteresis and thermal gradients to deliver maximum accuracy and repeatability. They are commonly used where measurement uncertainty must be minimized and the environment can be controlled.

Key features and benefits

• High resolution and accuracy for sub-micron positioning.
• Robust signal stability over long service life.
• Multiple mounting options (external, in-guide, and direct-mount).
• Wide range of measuring lengths and hollow-shaft options for cabling.
• Interfaces for digital and analog outputs to suit modern controls.
• Easy retrofit capability to upgrade older machines.

Typical applications

• High-precision CNC machine tools and grinders
• Coordinate measuring machines (CMMs) and comparators
• PCB assembly and semiconductor equipment
• Direct-drive stages and precision positioning systems
• Production metrology and automation lines

Installation & maintenance tips

Ensure proper alignment using the specified coupling and keep sealing surfaces clean. Periodic inspection of seals and readheads extends life; sealed systems require minimal maintenance, while exposed systems benefit from controlled environments.
